Industrial thermal systems face a constant engineering battle every single day. Sectors like petrochemical refining, power generation, and commercial HVAC applications demand extreme temperature management without causing catastrophic structural fatigue. Overlooking thermal stress can destroy even the most robust equipment rapidly. Specifying the correct U Bending Tube For Heatexchangers is never merely a geometric choice. It represents a critical reliability decision dictating maintenance cycles, operational safety, and overall system longevity.
Poor component selection directly leads to dangerous fluid leaks and massive facility downtime. This guide bypasses surface-level definitions to deliver actionable, enterprise-level engineering insights. We explore core structural trade-offs, TEMA and ASME compliance realities, and stringent procurement criteria. You will learn how to properly evaluate these critical components for high-stakes heat transfer applications.
Mechanical Independence: U-bend designs allow for free thermal expansion, eliminating the need for vulnerable sliding seals or expansion joints required in straight-tube configurations.
Reliability over Theoretical Efficiency: While countercurrent straight tubes offer marginally higher theoretical heat transfer, U-tubes drastically reduce leakage points by requiring only one tubesheet.
Stringent Manufacturing Tolerances: High-performance U-bends require precise bend radius calculations (typically $R \ge 1.5D$) and mandatory post-bend heat treatments to prevent Stress Corrosion Cracking (SCC).
Procurement Diligence: Sourcing requires verifiable Mill Test Certificates (MTC), Eddy Current Testing (ECT), and strict ovality control, particularly for thin-walled applications.
Heat exchangers operating under high pressure routinely experience large temperature gradients. Engineers refer to this condition as a high Delta-T environment. Internal tubes expand and contract constantly during normal operational cycles. Rigid, dual-tubesheet designs suffer from severe mechanical stress under these conditions. The tubes pull aggressively against the fixed tubesheets. This relentless mechanical action leads to dangerous tube pull-out. It also causes severe tubesheet deformation over time. Facility managers face a serious business problem. They must resolve these structural vulnerabilities to avoid costly emergency shutdowns.

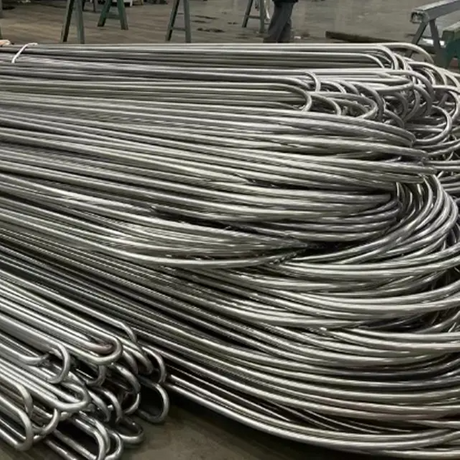

Engineers need a reliable structural solution to manage this thermal expansion naturally. Enter the U-bend design. The curved geometric shape allows the entire tube bundle to expand freely. It contracts safely within the outer shell without encountering hard resistance. You completely eliminate the structural mechanical stress acting on the anchoring points. The design replaces failure-prone mechanical expansion joints. It offers a passive, geometrically sound solution instead.
The outcome significantly improves operational safety. By removing rigid constraints, you protect the structural integrity of the entire heat exchanger vessel. Plants avoid the complex maintenance routines normally associated with sliding seals. The U-shape essentially absorbs thermal shock organically. It provides reliable mechanical independence for the entire internal bundle.
Specifying rigid straight tubes for fluids exhibiting extreme temperature fluctuations.
Relying solely on mechanical expansion joints in highly corrosive internal environments.
Underestimating the sheer force of thermal expansion on dual tubesheets.
Pure countercurrent straight tubes yield slightly higher thermodynamic efficiency. We acknowledge this fundamental engineering reality. Pure countercurrent flow maximizes the mean temperature difference. However, real-world engineering requires pragmatic trade-offs continuously. You must balance theoretical thermal efficiency against long-term field reliability. In many critical industrial scenarios, prioritizing mechanical stability outweighs marginal efficiency gains.
Evaluate the clear advantages of the U-bend approach. You reduce the number of sealing nodes drastically. A U-tube configuration requires only one tubesheet. This means you eliminate 50 percent of the rolled or welded tube-to-tubesheet joints. Every single joint represents a potential failure node. Reducing these connections directly reduces potential leak paths. Furthermore, maintenance crews appreciate the accessibility. Teams can extract the entire U-tube bundle from the shell easily. This extraction allows for comprehensive shell-side cleaning. You can conduct thorough external visual inspections without dismantling the entire unit.
Space and cost efficiency also heavily favor the U-shape. The design offers a much more compact physical footprint. It requires fewer heavy forgings. You only purchase and machine one high-pressure tubesheet instead of two. This geometry optimizes capital expenditures for heavy industrial applications immensely.
We must also address the transparent trade-off. Tube-side mechanical cleaning remains notoriously difficult. The sharp U-bends block rigid mechanical cleaning tools effectively. Specify U-tubes when your tube-side fluid remains clean. They work exceptionally well for chemically treatable fluids. Avoid specifying them for highly fouling or particulate-heavy media.
Evaluation Metric | Straight Tube Design | U-Bend Tube Design |
|---|---|---|
Thermal Efficiency | Highest (True countercurrent flow) | Moderate to High (Mixed flow dynamics) |
Thermal Expansion | Requires complex expansion joints | Expands freely without structural stress |
Leak Potential | High (Two tubesheets, double the joints) | Low (One tubesheet, 50% fewer joints) |
Shell-Side Cleaning | Difficult (Unless floating head is used) | Easy (Bundle is completely removable) |
Tube-Side Cleaning | Easy (Accommodates rigid mechanical reamers) | Difficult (Requires chemical flushing or hydro-jetting) |
You must anchor your component evaluation in recognized industry standards. We rely heavily on TEMA RCB-2.31 and ASME Section II for safe fabrication. Design bend radius calculations matter deeply for structural survival. Highlight the standard baseline immediately. The bend radius ($R$) must generally equal or exceed 1.5 times the tube outside diameter ($D$). Engineers write this rule simply as $R \ge 1.5D$. Sticking to this ratio prevents excessive material deformation during the cold-forming process.
Note the mandatory exceptions carefully. Thin-walled tubes present unique physical challenges. When the ratio of wall thickness to outer diameter drops very low ($t/D < 0.10$), standard rules change. You require customized, significantly larger minimum bend radii. Ignoring this exception leads to catastrophic structural collapse. It also causes severe wrinkling along the inner curve of the bend. Wrinkles disrupt fluid dynamics and create weak points.
Manufacturers must control ovality and wall thinning rigorously. Cold-forming alters physical dimensions dramatically. As the machine bends the metal, the outer wall stretches and thins out. Simultaneously, the inner wall compresses tightly. Top-tier manufacturers must prove their tooling controls ovality perfectly. They must stay well within strict ASME tolerances at all times. Excessive ovality restricts fluid flow internally. It creates dangerous pressure drops. It also prevents the insertion of flexible cleaning lances later.
Always request the exact die dimensions used during fabrication.
Verify the calculated thinning allowance prior to approving the design drawings.
Ensure your QA team measures the extrados wall thickness upon delivery.
Engineers must understand the inherent physical risks of cold-drawing. The U-bending process introduces massive residual mechanical stress into the metal structure. The metallic grain structure deforms under extreme force. This deformation increases the localized hardness of the material. Unfortunately, it simultaneously decreases material ductility. The component becomes highly vulnerable to external environmental attacks.
You must actively prevent Stress Corrosion Cracking (SCC). Highly stressed metal zones remain extremely susceptible to SCC. Chloride-rich operating environments accelerate this degradation rapidly. Proper metallurgical intervention is absolutely mandatory. Demand rigorous solution annealing from your fabrication partner. Heat austenitic stainless steels to an exact range between 1040–1100°C. Follow this heating phase with rapid quenching. Apply this thermal treatment strictly on the bent portion. Always include at least 150mm of the straight legs. This specific process relieves residual stress effectively. It restores the protective passive layer of the stainless steel.
Align your material choices directly to your specific process outcomes. Do not over-specify or under-specify your alloys.
SA-213 TP304: Choose this grade for baseline utility applications. It performs well in standard freshwater environments.
TP316L: Specify this grade for marine or Gulf Coast installations. The added molybdenum provides essential chloride resistance.
Inconel 625 or Titanium: Reserve these advanced alloys for extreme conditions. They survive highly corrosive petrochemical environments effortlessly.
Address vibration fatigue proactively. U-bends remain entirely unsupported at the furthest curve. High-velocity shell-side fluids induce dangerous vibrations across these unsupported spans. You must install properly engineered anti-vibration baffles. We often use flat metal strips woven between the tube layers. These baffles absorb kinetic energy. They prevent catastrophic fatigue cracking at the apex of the bend.
Establish a rigorous vendor qualification framework immediately. You must weed out low-tier fabricators quickly to protect your project. Low-quality fabricators often skip essential post-bend treatments to save time. Demand verifiable, third-party documentation constantly. Follow this mandatory checklist before placing any heavy industrial order.
Dimensional Precision: Require deeply documented tolerances for every single dimension. Check the Outside Diameter (OD), wall thickness, and strict ovality limits. Ensure the straight leg lengths maintain perfect uniformity for easy tubesheet insertion.
Non-Destructive Testing (NDT): Insist on rigorous testing protocols after the bending process concludes. Conduct standard Hydrostatic Testing to verify pressure integrity. Perform Eddy Current Testing (ECT) to detect subsurface micro-cracks. Use liquid dye penetrant testing specifically on the bend extrados to spot surface fissures.
Heat Treatment Verification: Inspect the vendor facility directly or via an agent. Ensure they possess modern, in-house, controlled-atmosphere furnaces. Open-air furnaces cause dangerous oxidation during stress relief. Controlled atmospheres prevent scaling and preserve surface finish.
Traceability: Demand proper metallurgical certification unconditionally. Require EN 10204 3.1 or 3.2 Mill Test Certificates (MTC) for all raw materials. Always maintain readiness for Third-Party Inspection (TPI) at the vendor location.
Procurement teams hold the ultimate responsibility for quality assurance. A cheap component often results in disastrous operational failures. Insist on exact standard compliance. Refuse shipments lacking proper EN 10204 documentation. This diligence guarantees a safe, reliable final product for your engineering teams.
U-bend tubes act as highly engineered solutions rather than mere industrial commodities. They absorb intense thermal shock naturally, protect structural boundaries, and drastically minimize hazardous leak points across critical infrastructure. Selecting the correct geometry, material, and fabrication standards directly guarantees operational safety. Plant operators rely heavily on these specific components to maintain uninterrupted production schedules.
Your next engineering step requires a thorough evaluation of fluid fouling factors and peak operational temperatures. Review your current maintenance logs to identify recurring thermal stress failures. We strongly encourage procurement managers to consult specialized engineering teams before finalizing specifications. Calculate your optimal bend radii meticulously, verify material grades against environmental chlorides, and demand rigorous post-bend heat treatments for every single future heat exchanger fabrication.
A: Generally $1.5 \times$ the Outer Diameter (1.5D), but this increases for ultra-thin wall tubes to prevent ovality and structural weakening.
A: Yes. Cold bending induces severe residual stress. Stress relief annealing (often between 1040–1100°C for stainless steel) is mandatory to prevent Stress Corrosion Cracking (SCC).
A: While the shell side is easily cleaned by pulling the bundle out, the tube side requires chemical flushing or specialized flexible hydro-jetting lances, as rigid mechanical reamers cannot navigate the bends.
A: U-tubes offer similar thermal expansion benefits as floating heads but are significantly more cost-effective and eliminate the internal sliding seals that are prone to catastrophic hidden leaks.
