For plant managers and process engineers, the true cost of a heat exchanger rarely stops at the initial capital expenditure. Hidden lifecycle expenses heavily dictate facility budgets. You face unplanned downtime, emergency equipment rentals, and labor-intensive tube repairs. Reactive maintenance drains resources quickly.

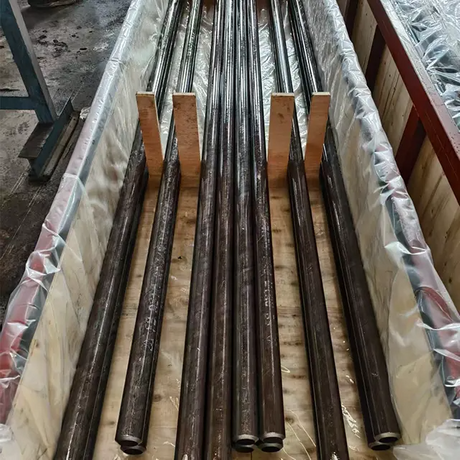

Tube failures account for a massive percentage of heat exchanger incidents. Historically, they cause up to 31–87% of failures in specific feedwater applications. Upgrading to a precision U Bending Tube For Heatexchangers fundamentally addresses the root cause of these issues. It mitigates the severe mechanical and thermal stresses causing premature equipment failure. You gain immediate operational stability.
We will provide a robust technical and financial evaluation framework in this article. You will learn exactly when and why you should specify U-tube bundles over traditional rigid straight-tube designs. We aim to help you optimize maintenance workflows and extend equipment longevity.
Thermal Stress Elimination: U-tubes naturally expand and contract independently, absorbing extreme temperature differentials (ΔT) without cracking tube sheets.
Maintenance Efficiency: Removable U-tube bundles allow for complete access to the shell side, dramatically reducing mechanical cleaning times.
Space Optimization: U-tube configurations deliver equivalent heat transfer surface area while requiring up to 30% less physical footprint than straight-tube counterparts.
Application Reality: They are highly effective, but require a "clean tube side / dirty shell side" fluid allocation due to the difficulty of mechanically cleaning the inside of the U-bend.
Many facilities fall into a dangerous and expensive maintenance trap. They embrace the "keeping it running" fallacy. Maintenance teams repeatedly patch aging equipment instead of upgrading it. They accept recurring routine tube sheet repairs as normal operating procedure. Emergency contractor mobilization becomes a standard monthly expense. Production halts ruin output targets and destroy profitability.
These reactive maintenance costs compound rapidly over time. You end up spending far more on labor and emergency rentals than the price of new equipment. Let us break down these hidden financial drains.
Routine Cleaning Labor: Teams spend excessive hours dismantling rigid structures to clear basic blockages.
Emergency Mobilization: Calling specialized contractors during unexpected weekend failures carries premium surge pricing.
Production Downtime: Every hour the heat exchanger remains offline halts interconnected manufacturing processes.
Rigid constraint causes significant thermal shock damage. A straight tube faces rapid temperature changes during startup and shutdown cycles. It naturally attempts to expand and contract. However, fixed tube sheets hold the tube rigidly in place at both ends. The metal forces extreme push and pull mechanical stress against these joints.
This rigid constraint inevitably leads to loosened joints. You will soon notice pinhole leaks developing along the weld seams. The equipment slowly degrades. Fluid cross-contamination occurs, forcing sudden and costly shutdowns.
Fouling introduces another severe threat to your operating budget. Heat Transfer Research Institute (HTRI) studies highlight a stark reality. Fouling and scaling degrade thermal efficiency by 10 to 25 percent. Rigid straight-tube units lack easy disassembly features. Removing internal scale becomes a high-cost, labor-intensive endeavor.
Operators struggle to clean the shell side effectively when the bundle remains fixed. Efficiency drops while energy consumption spikes. The facility pays more utility costs to achieve the same thermal transfer. This creates an unsustainable operational loop.
Integrating a precision U Bending Tube For Heatexchangers completely changes your maintenance trajectory. It actively prevents catastrophic equipment failure. You eliminate the rigid constraints causing your most expensive repairs.
The "free expansion" principle governs this engineering success. Physics works entirely in your favor here. A U-tube design features only one stationary tube sheet. The bends remain completely unconstrained at the rear head of the shell. Tubes can freely flex as internal temperatures fluctuate.
They absorb thermal expansion naturally. You no longer battle destructive push-pull forces against a secondary tube sheet. The bundle simply grows and shrinks within the shell casing. This flexibility effectively immunizes the unit against thermal shock during aggressive heating cycles.
This design significantly reduces potential sealing failures. A single tube sheet means 50 percent fewer potential leak points. Traditional double-tube-sheet models carry double the failure risk. This reduction proves absolutely critical in demanding industrial environments.
High-pressure and high-temperature gas or liquid services demand perfect sealing. Fewer mechanical joints translate directly to higher operational safety. You reduce the risk of hazardous fluids mixing. Maintenance teams spend less time chasing microscopic gasket leaks.
Compact footprint economics also drive widespread industry adoption. The U-shape effectively folds the required heat transfer length in half. It saves up to 30 percent in physical installation space.
You can maximize limited floor plans in crowded mechanical rooms. This makes it an ideal choice for retrofitting older facilities. Space-constrained plants benefit immensely from this spatial efficiency. You achieve the required thermal output without tearing down facility walls to accommodate massive straight-tube equipment.
Efficiency and mechanical resilience must balance against long-term maintainability. You must evaluate engineering trade-offs objectively. U-tube bundles offer incredible benefits, but they are not universal solutions. Proper specification requires careful fluid analysis.
The primary constraint involves tube-side cleaning limitations. Standard mechanical cleaning tools cannot easily navigate tight U-bends. Rigid brushes and metallic scrapers get stuck. They fail to clear the apex of the internal curve. Specialized flexible lances exist, but they increase cleaning duration.
Engineers follow a strict rule of thumb for specification. You should only specify U-tubes under highly controlled conditions. The tube-side fluid must remain highly treated, pure, or non-fouling. Steam, clean cooling water, and refined chemicals represent ideal internal fluids.
You must route the "dirty" or fouling fluid exclusively to the shell side. The removable bundle makes shell-side cleaning highly effective. Hydro-blasting and chemical cleaning easily remove exterior scaling. You pull the bundle out, wash it thoroughly, and slide it back in.
Design Feature | Fluid Allocation Strategy | Maintenance Impact |
|---|---|---|
Tube Side (Inside the U) | Clean, treated, non-fouling fluids (e.g., steam, pure water). | Requires minimal mechanical cleaning. Chemical flushing suffices. |
Shell Side (Outside the U) | Dirty, particulate-heavy, or scaling fluids. | Bundle is easily removed for aggressive high-pressure hydro-blasting. |
Center tube replacement presents a harsh mechanical reality. Replacing a single damaged U-tube in the center of the bundle is practically impossible. You cannot reach the inner core without dismantling the outer layers entirely.
Therefore, tube plugging remains the standard localized repair method. You isolate the leaking tube by driving tapered plugs into the tube sheet. You sacrifice a tiny fraction of thermal efficiency rather than rebuilding the entire bundle. Facilities accept this trade-off because the overall leak rate drops significantly compared to straight-tube designs.
Manufacturing quality dictates long-term performance and reliability. Cold bending tubes creates severe residual mechanical stress. The metal grain structure deforms dramatically during the bending process. This stress concentrates heavily at the outer apex of the U-bend.
If left untreated, these stressed areas become highly susceptible to failure. Stress Corrosion Cracking (SCC) ruthlessly attacks the weakened metal. Localized corrosion and erosion accelerate rapidly under fluid velocity. This structural degradation completely negates the longevity benefits of the U-tube design.
Compliance with post-weld and post-bend heat treatment is absolutely non-negotiable. You must specify manufacturers who perform rigorous thermal stress relieving. They must anneal the U-bends carefully in specialized furnaces.
This heat treatment process restores the metallurgical integrity of the grain structure. It must strictly adhere to rigorous TEMA (Tubular Exchanger Manufacturers Association) and ASME standards. Proper annealing ensures the bend remains just as strong as the straight sections of the tube.
Non-Destructive Testing (NDT) guarantees physical integrity before the equipment leaves the factory. Quality manufacturers implement strict testing protocols.
Eddy Current Testing (ECT): Detects microscopic internal flaws and surface cracks within the tube wall.
Ultrasonic Testing: Verifies wall thinning tolerances post-bending to ensure pressure ratings remain intact.
Hydrostatic Testing: Pressurizes the completed bundle to confirm absolute seal integrity at the tube sheet.
Common Mistakes to Avoid: Never accept un-annealed U-bends for high-temperature applications. Do not bypass NDT certifications to save initial capital costs. Skipping these quality checks invites rapid stress corrosion cracking and catastrophic failure.
Maintenance engineers frequently face a critical capital crossroad. Do you continuously repair the failing heat exchanger, or do you replace it entirely? Making the wrong choice costs the facility heavily.
We use a specific decision matrix framework to guide procurement teams. You must evaluate the structural integrity of the outer carbon steel shell. If the shell remains structurally sound, rebundling provides massive advantages. You simply pull the old straight-tube bundle out and discard it.
You then insert a custom-engineered U-tube bundle into the existing shell. This process is called rebundling. It maximizes your existing infrastructure while entirely upgrading the internal thermal technology.
Action Matrix | Cost Implication | Downtime Expectation | Best Use Case |
|---|---|---|---|
Localized Repair (Plugging/Sleeving) | Lowest initial cost. | 1-3 Days. | Minor, isolated leaks in newer bundles. |
Rebundling (U-Tube Upgrade) | 15-25% more expensive than minor repair. | 2-6 Weeks lead time. | Frequent leaks, shell remains structurally sound. |
Full Unit Replacement | Highest capital expenditure. | 6-18 Months lead time. | Shell is severely corroded or structurally compromised. |
Rebundling requires a higher upfront cost than localized repairs. It is often 15 to 25 percent more expensive than plugging multiple tubes. However, it is dramatically cheaper than replacing the entire heat exchanger unit. You avoid modifying facility piping, foundation pads, and structural supports.
It is also significantly faster. You look at a 2 to 6 week lead time for a new bundle. A full unit replacement can take many months of engineering, permitting, and fabrication. You restore production capacity rapidly.
Upgrading to high-quality, stress-relieved U-tubes drives exceptional long-term ROI. You fundamentally lower your annual operating expenditure (OPEX). You eliminate recurring tube-sheet leak repairs caused by thermal shock. You reduce the frequency of costly gasket replacements. The facility shifts from reactive firefighting to predictable, stable operations.
Precision U-tubes offer an engineering compromise heavily skewed toward operational reliability. By sacrificing some extreme counter-current thermal efficiency and tube-side mechanical cleaning, facilities gain an incredible operational advantage. Plants achieve near-immunity to thermal shock and witness a drastic reduction in catastrophic leak events.
Specify U-tubes when dealing with extreme temperature differentials to prevent rigid structural failure.
Always allocate clean fluids to the inside of the U-tube and dirty fluids to the shell side.
Demand strict adherence to TEMA standards, including mandatory stress-relief annealing on all bends.
Choose rebundling over full unit replacement when the exterior shell remains structurally viable.
Stop paying for recurring emergency repairs on outdated straight-tube designs. Consult with your engineering team to assess your current heat exchanger failure rates today. Review your facility flow parameters carefully. Determine if a custom U-tube bundle replacement represents the most cost-effective path forward for your operation.
A: It is highly restricted. While specialized flexible lances and chemical cleaning (dissolving scale) can be used, standard rigid mechanical cleaning tools cannot pass through the bend. Tube-side fluids must be kept clean.
A: Having a single tube sheet allows the U-shaped tubes to expand and contract freely at the opposite end. This prevents the mechanical stress that causes leaks in fixed-tube-sheet designs during high temperature differentials.
A: The minimum bend radius typically depends on the tube's outer diameter (OD) and material thickness, commonly adhering to TEMA standards (often at least 1.5 to 2 times the OD) to prevent excessive wall thinning and ovality during the cold bending process.
