Heavy machinery operating in mining, construction, and agriculture faces continuous dynamic loading and severe high-impact stress. Component failure in these extreme environments results in catastrophic operational downtime and unacceptable safety hazards. Unfortunately, standard carbon steel tubing cannot meet the demanding weight-to-strength ratios required for modern, high-efficiency equipment. Over-engineering by relying on thicker standard steel only adds unnecessary dead weight. This practice heavily reduces functional payload capacity while drastically worsening fuel efficiency. Specifying the correct High Strength Machinery Industrial Tube requires precisely balancing yield strength, fatigue resistance, and practical fabrication realities. This guide provides mechanical engineers and procurement teams with a clear, evidence-based framework. You will learn exactly how to evaluate, select, and source high-strength components to ensure lasting machinery reliability.
Modern engineering demands push heavy equipment beyond legacy performance limits. When you evaluate standard structural tubes, manufacturers typically rate them based on static load-bearing capabilities. However, real-world field conditions rarely remain static. Equipment operators subject these structures to brutal physical demands daily.
Heavy machinery, such as excavator booms, front-loader arms, and crane jibs, experiences intense cyclic loading. They endure constant torsion, sudden shock impacts, and high-frequency vibration. Standard grades of carbon steel handle these dynamic forces poorly over time. The constant flex and release cycle leads to micro-cracking. These microscopic fractures slowly propagate through the metal lattice, eventually causing abrupt catastrophic failures during critical lifting operations.
Engineers historically solved this strength deficit through over-engineering. They simply specified thicker, lower-grade steel. This approach creates a cascading series of mechanical penalties. Using excess steel dramatically increases the equipment's tare weight. Extra dead weight directly reduces the functional payload capacity. Every pound of unnecessary steel structure means a pound of dirt, ore, or cargo the machine cannot lift. Furthermore, heavier boom arms force hydraulic systems to work harder. This accelerates hydraulic pump wear, increases fluid temperatures, and drives up diesel fuel consumption.
To break this inefficient cycle, you must define clear success criteria for any material upgrade. A successful transition to high-strength alloys must achieve several tangible goals:
Not all high-strength materials fit every application. Engineers must categorize structural materials based on both manufacturing method and alloy chemistry to ensure they match operational demands.
The core manufacturing process dictates the structural integrity and dimensional limits of the final product. Seamless manufacturing processes create tubes without any longitudinal weld seams. Engineers strongly prefer seamless varieties for high-pressure hydraulic cylinders. Components requiring uniform multidirectional strength benefit greatly from this uninterrupted grain structure. However, seamless production carries a higher financial cost and faces strict limitations regarding maximum deliverable diameter.
Conversely, welded manufacturing processes offer high scalability. Longitudinal Submerged Arc Welding (LSAW) and Helical Submerged Arc Welding (HSAW) allow mills to produce massive structural components. You will frequently see these utilized in large-diameter crane columns or mining chassis frames. Because the weld seam introduces a potential failure point, structural integrity relies entirely on quality control. Using welded products requires stringent weld-seam integrity testing. Manufacturers must employ comprehensive ultrasonic or X-ray inspections to prevent weak points from entering the supply chain.
The following chart summarizes the critical differences between these manufacturing approaches:
| Feature | Seamless Tubes | LSAW Tubes | HSAW Tubes |
|---|---|---|---|
| Primary Application | Hydraulic cylinders, high-pressure lines | Heavy structural columns, crane booms | Long-distance piping, large structural piles |
| Strength Uniformity | Excellent (No weld seam) | Good (Dependent on weld quality) | Moderate (Helical seam introduces complexity) |
| Diameter Limits | Limited (Typically under 24 inches) | Large (Highly scalable) | Very Large (Highly scalable) |
| Relative Cost | Highest | Moderate | Lowest |
Beyond the physical manufacturing method, the chemical composition of the steel dictates its ultimate performance ceiling. The industry generally divides these materials into two primary metallurgical categories.
High-Strength Low-Alloy (HSLA) steel represents the most common upgrade path. Materials like S355, S460, and S690 balance impressive strength improvements with reasonable weldability. The low carbon content helps maintain ductility, while small additions of alloying elements like vanadium or niobium drive up the strength. HSLA materials serve as excellent foundational choices for general heavy equipment frames.
Quenched and Tempered (Q&T) steel serves the most extreme load conditions. The Q&T process involves rapid cooling followed by controlled reheating. This alters the crystal structure of the metal, unlocking maximum yield strength. While Q&T steels offer unparalleled strength-to-weight ratios, they introduce significant fabrication complexities. Machining and welding these grades require highly specialized procedures to avoid ruining the material's carefully engineered properties.

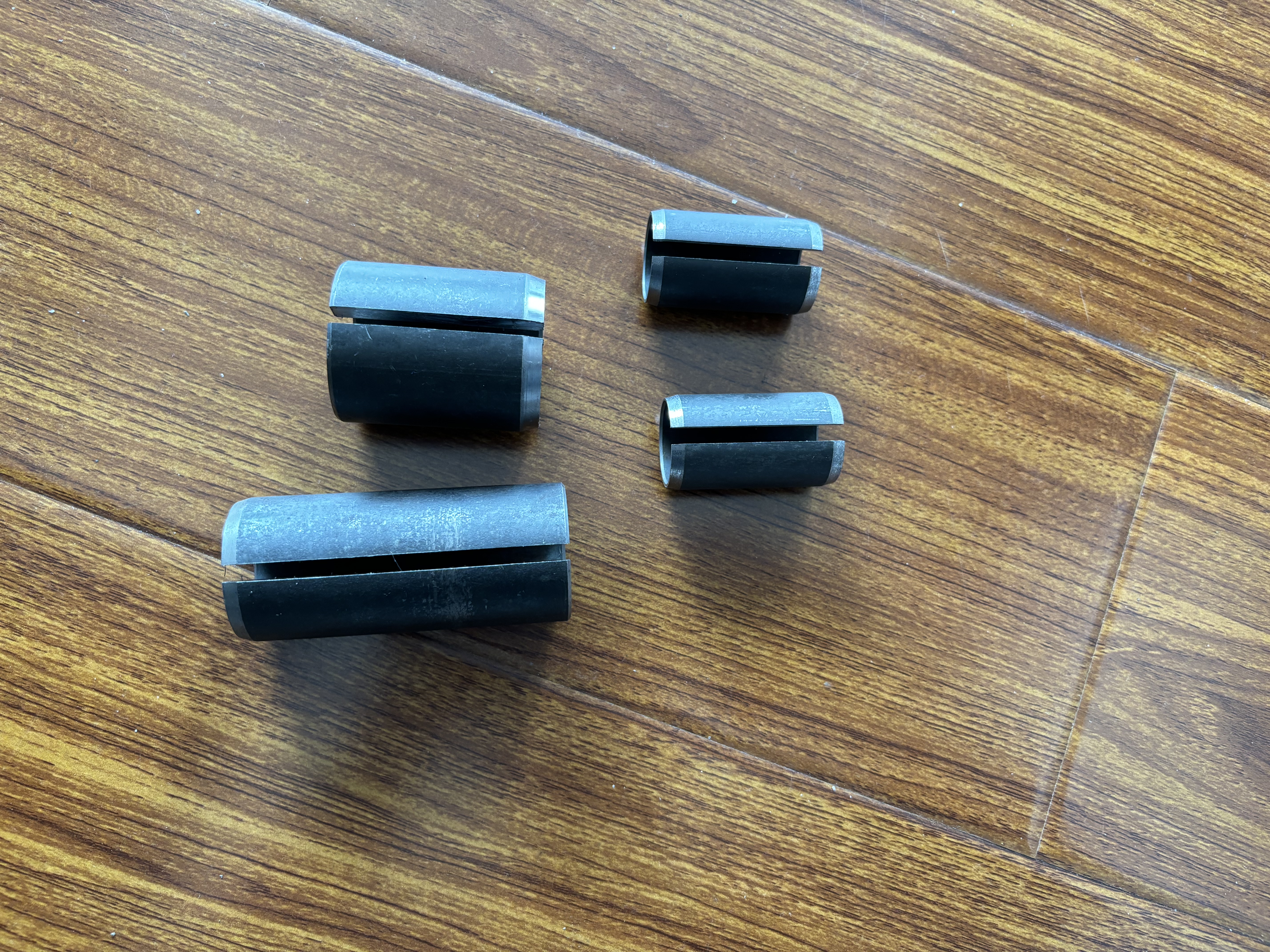

Selecting a High Strength Machinery Industrial Tube involves looking past basic marketing claims. You must rigorously evaluate specific metallurgical properties against your exact engineering outcomes.
Design engineers primarily evaluate the threshold where permanent deformation occurs, known as Yield Strength. When a machine lifts a heavy load, the structural arms bend slightly. If the load exceeds the yield strength, the metal bends permanently. This ruins the component alignment. Upgrading to high-strength material raises this critical threshold, allowing the machine to handle heavier loads without permanent warping.
However, engineers must apply a skeptical lens when chasing maximum strength. High strength often correlates directly with brittleness. If a material becomes too brittle, it snaps under sudden impact rather than bending. Therefore, tubing must undergo rigorous evaluation for Charpy V-Notch (CVN) impact toughness. This metric is non-negotiable for machinery operating in sub-zero environments, such as arctic mining operations. Cold temperatures severely exacerbate brittleness. You must verify the material can absorb heavy impact energy at its lowest intended operating temperature without shattering.
Raw strength matters little if the component cannot fit into the required assembly. For telescoping components or hydraulic applications, dimensional accuracy becomes the deciding factor. Outside diameter (OD) and wall thickness (WT) tolerances directly dictate the amount of costly post-machining required to finalize the part.
Poor concentricity—where the wall thickness varies unevenly around the circumference—causes severe problems in hydraulic cylinders. It creates weak zones and leads to rapid seal failure. You must also evaluate stringent straightness specifications. Even minor bowing in a long telescoping crane boom creates binding in moving mechanical assemblies. This friction generates heat, strips protective coatings, and ultimately causes the boom mechanism to jam under load.
Transitioning to advanced materials creates ripple effects throughout the manufacturing process. Procurement teams often secure excellent material, only to watch production costs skyrocket due to unforeseen fabrication bottlenecks.
The primary risk involves the shop floor. Upgrading to high-strength alloys significantly accelerates cutting tool degradation. Standard high-speed steel tools dull almost instantly when cutting Q&T materials. This forces machinists to slow down their equipment, which drastically increases total machining time per part. Delayed production schedules quickly erode any projected savings.
Mitigating this risk requires proactive planning. You must factor in the cost of advanced tooling, such as carbide or ceramic inserts, well before production begins. Production managers must conduct prototyping phases to establish modified feed rates and spindle speeds. Expecting your shop floor to process high-strength grades at the same speed as mild carbon steel is a critical planning error.
Welding presents the most dangerous fabrication hurdle. The risk lies in the intense heat generated by the welding arc. Improper welding of high-strength tubes fundamentally alters the microscopic grain structure in the Heat Affected Zone (HAZ). This localized heating and uncontrolled cooling can essentially erase the material's structural benefits, creating a brittle failure point right next to the weld seam.
Mitigation demands strict adherence to engineering protocols. Manufacturers must establish and strictly enforce Welding Procedure Specifications (WPS). Implementing these procedures effectively involves several critical steps:
Skipping these steps almost guarantees delayed cracking, which often reveals itself weeks after the equipment leaves the factory floor.
Sourcing these materials requires aggressive vendor auditing. High-strength components carry immense safety liabilities, meaning you cannot afford to trust unverified supplier claims.
You must establish strict material traceability protocols. Begin by rejecting any vendor who cannot provide transparent Mill Test Reports (MTRs). These documents must tie directly to the specific heat numbers stamped on the delivered steel. An MTR verifies the exact chemical composition and mechanical properties of the batch. If a vendor obscures this paperwork or provides generic certificates, remove them from your shortlist immediately.
Next, evaluate their testing capabilities. Shortlisted vendors must prove they possess in-house or certified third-party Non-Destructive Testing (NDT) capabilities. For heavy machinery applications, this must include comprehensive ultrasonic testing (UT) to detect internal voids and hydrostatic testing for hydraulic applications. You need empirical data proving the tube contains no hidden flaws.
Supply chain scalability also requires deep scrutiny. Producing one perfect prototype is relatively easy. Evaluating the supplier's ability to maintain tight dimensional tolerances across high-volume production runs is far more important. Ask for statistical process control (SPC) data from previous large-scale runs to verify their consistency over time.
Finally, outline clear next steps before signing bulk contracts. Always request sample cuts from the proposed material batch. Send these samples for independent metallurgical verification. Run them through your own in-house machinability and welding tests. This hands-on validation phase protects your production timeline and ensures the material behaves exactly as advertised before committing to bulk procurement.
A: Yield strength is the point at which the tube permanently bends or deforms. Tensile strength is the point at which it actually breaks. For heavy machinery, yield strength is the critical design metric to prevent structural warping under heavy operational loads.
A: It reduces the volume of steel required and lowers the end-product's weight, which is a massive selling point for machinery. However, initial material costs per ton and fabrication costs (welding/machining) will likely be higher due to specialized tooling requirements.
A: At a minimum, require EN 10204 3.1 certification. For critical load-bearing applications, demand EN 10204 3.2 (third-party verified), alongside specific ASTM, DIN, or EN standards relevant to your geographic market to ensure total safety compliance.
A: No. High-strength and Q&T tubes typically require low-hydrogen consumables, strict pre-heating, and carefully managed interpass temperatures to avoid cracking and loss of strength in the weld zone.
